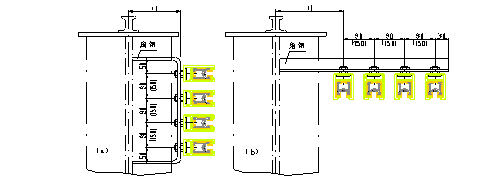

1. Installation methods: vertical (a) and horizontal (b) (as shown in the figure below).
 |

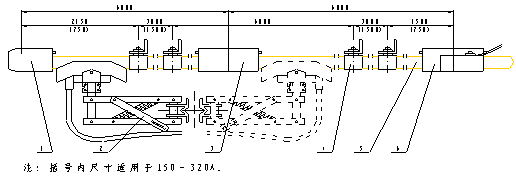

2. Device schematic diagram:
1. Terminal cover 2. Double-pole current collector 3. Rail joint 4. Hanging seat 5. Rail and sheath 6. Power feeder
 |

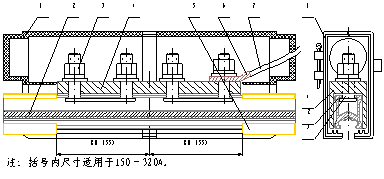

3. Joint device:
 |
3. Joint device:
1. Joint sheath 2. Guide rail 3. Connecting screw 4. Aluminum joint 5. Guide rail sheath
6. Copper terminal 7. Power cable
㈣ Power supply methods:
When considering the slide wire power supply points, the total number and total capacity of electrical equipment on the same span, the voltage drop value over the full length, and the ambient temperature should be considered first (the voltage drop calculation can be based on the data in the previous guide rail parameter table). The following power supply methods are generally available for users' reference: ① Single-end power supply; ② Middle power supply; ③ Two-end power supply; ④ Power supply at 1/6 from both ends; ⑤ Power supply at 1/10 from both ends and three-point power supply in the middle, etc.
