I. The leading car, guided forward by the shifting fork, drives the flat cable or other cables.
II. The middle trolley, mainly used to carry cables, operates in coordination with the leading car..
III. The end devices: mainly used to fix the trolley's operating position, preventing the trolley from sliding off the track. They can control the trolley's travel distance, etc.
IV. The flat cables carried can be customized in various specifications and models. Steel wire ropes or video cables can be added, etc.
V. The track hangers:

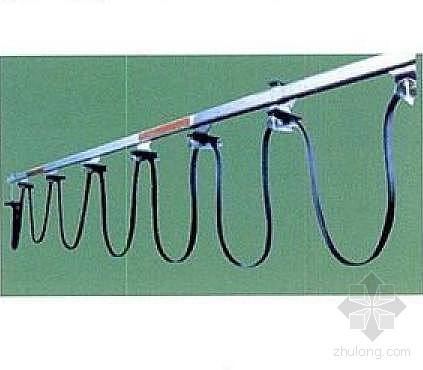

VI. The actual operation diagram of the trolley.
HXDL series is composed of tracks, cable-carrying trolleys, cables, and suspension and fixing components. With its simple structure and complete performance, this product is widely used in mobile power supply and signal transmission systems of hoisting and transport machinery in railway freight yards, ports, and tobacco machinery industries.
The cable trolley wire track is formed by cold-rolled steel plate in one cold drawing to ensure the accuracy of the track cross-section dimensions, replacing the unsafe, heavy angle steel and other conductive methods that have disadvantages such as dust accumulation on indoor sliding lines and short circuits caused by icing outdoors, affecting usage. It has unique domestic characteristics. The track unit length of 4-6m uses coupling connectors and can be extended to any length as needed.
Note: The above information and technical parameters are compiled and released by Yangzhou Darui Electric Co., Ltd.
