I. Flat Cable Technical Parameters
1. AC rated voltage: Uo/U=450V/750V
Uo is the RMS value of the voltage between any main conductor and earth
U is the RMS value between any two phase conductors
2. Operating voltage: AC system: <1.1 rated voltage
DC system: <1.5 rated voltage
3. Long-term working temperature of the core: ≤65℃
4. Product standard: Q/32028AQ001－91

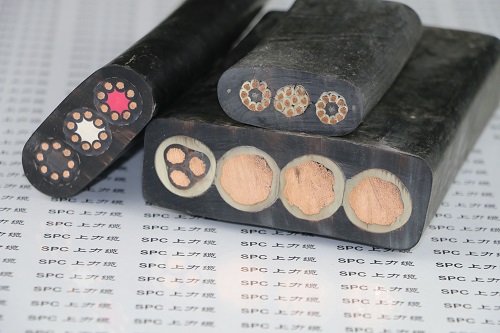

II. Flat Cable Product Names and Uses
Model Name Allowable Temperature Rise Application Scope
YBP－J Natural styrene-butadiene insulation and sheath, steel wire reinforced, copper wire shielded flat cable 70°C Indoor oil-free places
YFBPG Natural styrene-butadiene insulation and neoprene sheath, steel wire reinforced, copper wire shielded flat cable 70°C Outdoor and oily places
YBP Natural styrene-butadiene insulation and sheath, copper wire shielded flat cable 70°C Indoor oil-free places
YB Natural styrene-butadiene insulation and sheath flat flexible cable 70°C Indoor oil-free places
YBFP Natural styrene-butadiene insulation and neoprene sheath, copper wire shielded flat cable 70°C Outdoor and oily places
YBF Natural styrene-butadiene insulation and neoprene sheath flat flexible cable 70°C
