TL180II Steel Cable Drag Chain High Temperature Resistant Drag Chain
Darui Electric recommends
Since the expanded shape of the steel-aluminum drag chain is like an arch bridge, people often call it bridge-type steel-aluminum drag chain. Now the steel-aluminum drag chain has been widely used on machine tools, mainly for cables, oil pipes, gas pipes, water pipes, and air ducts, playing a role in traction and protection. It also makes the overall appearance of the machine tool more beautiful.
Bridge-type steel-aluminum drag chains are divided into three types according to different usage environments and requirements: bridge-type steel drag chain, fully enclosed steel drag chain, and semi-enclosed steel drag chain.
Bridge-type steel-aluminum drag chains are available in models 45, 65, 95, 125, 180, 225, and 250. The width of the drag chain can be customized according to user requirements, with bending radius ranging from 50 to 800.
The main body of the steel-aluminum drag chain is composed of chain plates (high-quality steel plate chrome-plated), support plates (extruded aluminum alloy), and shaft pins (alloy steel), etc., so that no relative movement occurs between the cable or rubber hose and the drag chain, no distortion or deformation occurs. The chain plates are chrome-plated, giving a novel appearance, reasonable structure, high flexibility, high strength, no deformation, easy installation, reliable use, and easy disassembly. Especially, this product uses high-strength wear-resistant materials and alloy copper as shaft pins, which improves the wear resistance of the product, makes bending more flexible, reduces resistance, lowers noise, and thus ensures long-term use without deformation or sagging.

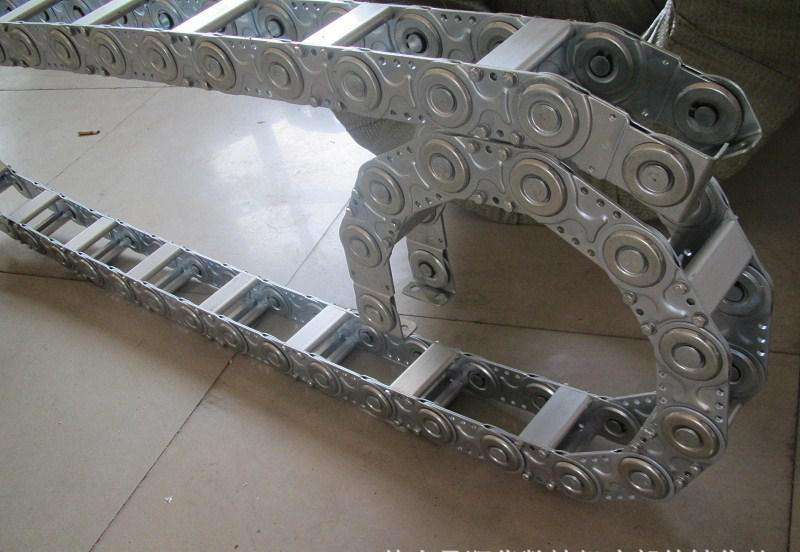

TL180II Steel Cable Drag Chain High Temperature Resistant Drag Chain
The TLG type steel drag chain has a maximum travel distance of 40 meters and is suitable for all transmission methods. It can be extended or shortened at will.
In addition, the bending radius can be changed by changing the shaft pins. The width of the support plate of the drag chain is from 150mm to 800mm, and the interval between holes is 5mm. The height of the chain plate, that is, the height of the support plate, is determined by the maximum diameter of the cable. When the machine tool operates at maximum capacity, if the width of the drag chain exceeds 300mm and the length exceeds 4m, for stability reasons, consideration should be given to choosing a drag chain one size larger. The bending radius should be selected according to the maximum diameter of the cable and should reach 10 times the cable diameter. The bending radius can be selected from 100-600mm according to the given table, and a smaller radius can be selected accordingly for small strokes.
The length of the drag chain = 1/2 stroke + 4 bending radii. This is only applicable when the fixed connection is at the midpoint of the stroke. The fixing of the drag chain can be selected according to the position of the machine tool. The fixed angle steel can be placed on the outer or inner circumference, inside or outside the drag chain. Generally, the connection part is inside the drag chain and towards the outer circumference.
The TLG series steel drag chain is a new type of steel drag chain and is a supplement to the TL series. Compared with the TL series steel cable drag chain, it has greater mechanical strength and a more beautiful appearance. The steel drag chain can be quenched and carburized as needed to obtain stronger mechanical strength and toughness. The surface of the steel drag chain can be treated with galvanizing, chrome plating, or nickel plating to adapt to different working environments. Steel drag chain selection technology.
TL series metal drag chain models
